Equipment function: The aerosol generator atomizes liquid paraffin into aerosol through the nozzle. It is mainly designed for the sensitivity and function test of smoke alarm and detector. SM220 aerosol generator adopts compressed gas to atomize liquid paraffin, therefor the aerosol generator includes precision pressure regulating valve and pressure gauge and time controller. It combines two operation modes: external and internal control modes. In external control mode, the aerosol on/off is controlled by 20VDC input signal. In internal control mode, the aerosol on/off is controlled by embed timer and external 24VDC power supply. The work duration and time interval are settable on time controller. Equipment parameters: Model: SM220 Power supply: 24VDC 50W Air supply: 0.5Mpa, dry, oil free, Agent: liquid paraffin Bottle: 100ml

Happy Chen – 第 2 页 – 智检仪器专业生产销售烟雾报警器探测器测试标准烟箱

Q: ZNOBS110 Obscuration meter

Equipment Function ： Optical smoke density meters are mainly used to measure the concentration of smoke or aerosols. The ZNOBS110 optical smoke density meter emits transmitted light from an infrared light source through the testing area of the smoke box and reflects it into the photoelectric element. By measuring the attenuation of the photoelectric signal, the concentration of smoke or aerosol in the smoke box is measured. The intelligent inspection instrument ZNOBS110 model optical smoke density meter adopts imported components and advanced photoelectric system, which can withstand the influence of environmental temperature changes and environmental light. Zero drift and temperature drift are extremely small, and can operate stably for a long time. The ZNOBS110 optical smoke density meter is suitable for use in standard smoke detector test boxes, fire test rooms, and other applicable occasions such as EN 54-7, EN 14604, GB 4715, GB 20517, etc. Specification ： 1) Model: ZNOBS110 2) Power: 12VDC Power: 10W 3) Applicable standards: EN14604, EN54-7, GB20517, GB4715 4) Detection type: Transmitted light 5) Light source wavelength: 880nm~950nm, 6) Range: 0-2 dB/m, 7) Zero drift 0.2% F.S.

Q: CO alarm calibration chamber

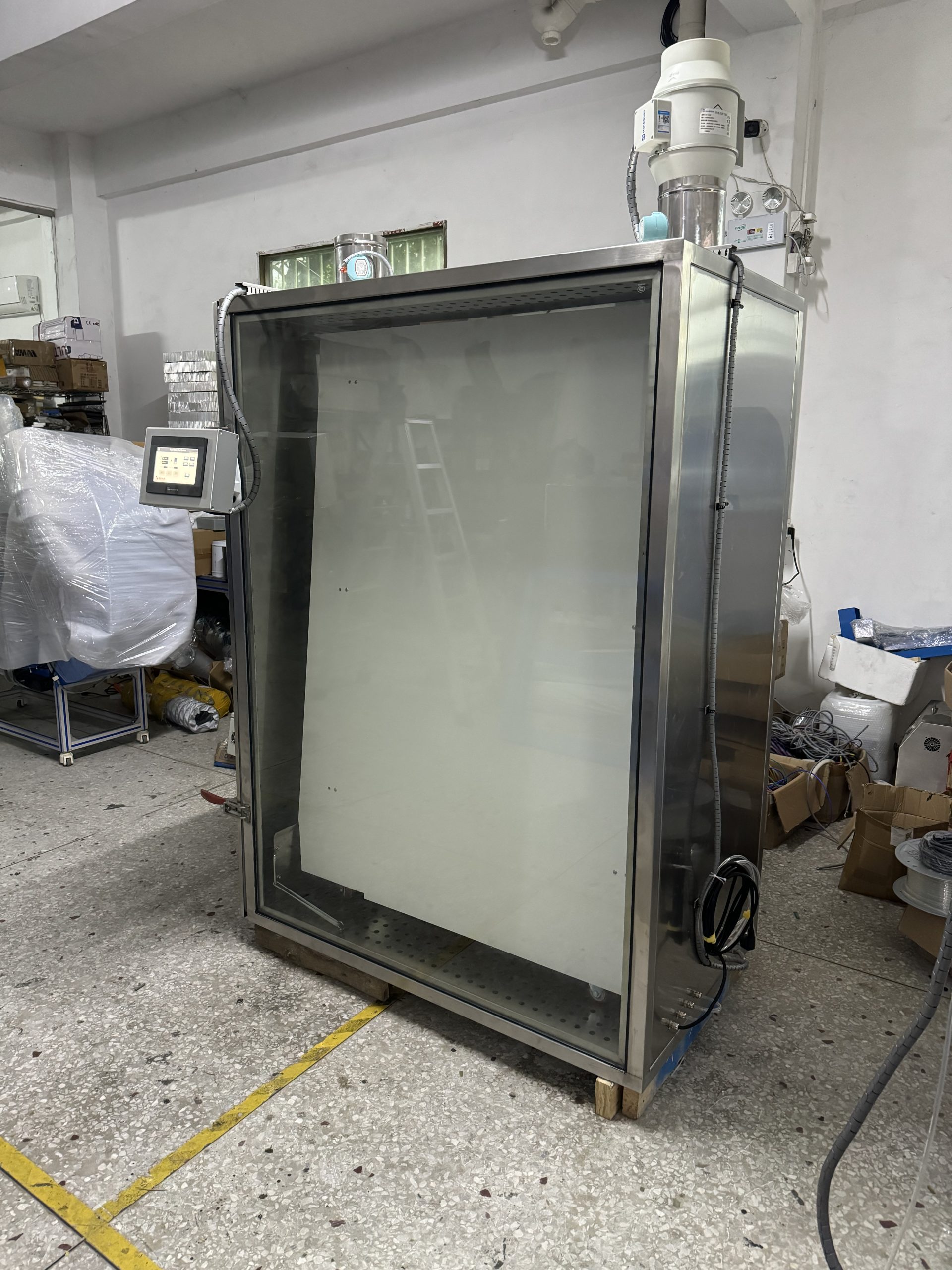

Equipment Function ： The equipment is intended for gas alarm or Carbon monoxide alarm testing and calibration in mass production in advantage of its big volume. The equipment provides a sealed stainless-steel chamber with glass wall for monitoring alarm status. The special designed big open door can close and secure easily without gas leakage. The volume of chamber and size of samples shelves are custom-made. It can hold 100 alarms normally. The controller injects quantitative high concentration gas into chamber and the gas stirred by circulating fan to get homogeneous test gas in certain concentration. That gas will be test gas for response test or threshold setting of gas alarm product. The circulating fan and porous plate are also specially arranged to get uniform test gas and avoid the high concentrating gas getting into alarm directly during gas injection. On the top of chamber, the inlet and outlet and exhaust fan are controlled by PLC to exchange air in chamber. Component ： CH4/CO gas controller Set the gas volume and inject gas with precision control. The gas was injected in to chamber in short time and mix quickly. It is easy to count response time of alarm Control precision: +/-5ppm CH4/CO alarm test chamber. 1）Stainless steel chamber with glass windows. 2）samples shelves, can fit with customized adaptor to connect with alarm for power supply or signal transmission 3）Chamber size: 1.8*1.0*0.8m 3.Gas analyzer, CO or CH4 (customer provide or quote additionally)

Q: GAS alarm calibration chamber

Equipment Function ： The equipment is intended for gas alarm or Carbon monoxide alarm testing and calibration in mass production in advantage of its big volume. The equipment provides a sealed stainless-steel chamber with glass door for monitoring alarm status. The special designed big open door can close and secure easily without gas leakage. The volume of chamber and size of samples shelves are custom-made. It can contain about 60 alarms. The controller control high speed valve to inject quantitative high concentration gas into chamber and the gas stirred by circulating fan to get homogeneous test gas in certain concentration. That gas will be test gas for response test or threshold setting of gas alarm product. The circulating fan and porous plate are also specially arranged to get uniform test gas and avoid the high concentrating gas getting into alarm directly during gas injection. On the top of chamber, the inlet and outlet and exhaust fan are controlled by PLC to exchange air in chamber. Component ： CH4/CO gas controller Adjust precision flow control valve manually Set the gas valve open time and inject gas with precision time control. The gas was injected in to chamber in short time and mix quickly. It is easy to count response time of alarm Control precision: +/-5ppm for CO CH4/CO alarm test chamber. 1）Stainless steel chamber with glass windows. 2）samples shelves, can fit with customized adaptor to connect with alarm for power supply or signal transmission 3）Chamber size: 0.8*0.65*1.0m 3.Gas analyzer, CO or CH4 shall be quoted separately

Q: ZNGAS-10 GAS Detectors Test Chamber

Equipment Function ： The equipment is intended for gas alarm or Carbon monoxide alarm sampling test. The equipment provides a sealed stainless-steel chamber with glass door for monitoring alarm status. The volume of chamber and size of samples shelves are custom-made. It can contain about 10 alarms. The controller control high speed valve to inject quantitative high concentration gas into chamber and the gas stirred by circulating fan to get homogeneous test gas in certain concentration. That gas will be test gas for response test or threshold setting of gas alarm product. The air speed are adjustable to get uniform test gas and avoid the high concentrating gas getting into alarm directly during gas injection. Parameter ： Model：ZNGAS-10 Power supply：220vAC,1 kW Applicable standard：EN50194-1, EN50291-1 Chamber：5m x 0.4m x 0.3m. Gas injection：High speed valve, PLC ms time control. Circulation fan：2 PWM fan，set and adjust by HMI HMI：7” touchscreen Gas analyzer,Gas cylinder and pressure control value ：Not included

Q: Fire detector impact Test device

Device features : The detector crash test device is designed and produced in accordance with the EN 54-7 appendix for the crash test of fire alarm system products such as detectors, and the device is composed of a pendulum, an impact head, a weight, a frame, and an adjustable sample mounting bracket, and the height of the sample mounting plate can be easily adjusted up and down by screws according to the shape and height of the sample. Set to meet the following standards: GB 4715 Point-type smoke fire detector clause 4.14 Crash test and Appendix E crash test apparatus GB 20517 Stand-alone smoke fire detection alarm Clause 5.20 Crash test GB 19880 Manual fire alarm button Clause 4.14 Crash test BSEN 54-7 Fire detection and fire alarm systems — Part 7: Smoke detectors — Point detectors using scattered light, transmitted light or ionization Clause 5.14 Impact(operational)and Annex E Apparatus for impact test BSEN Fire detection and fire alarm systems —Part 11: Manual call points 54-11 5.15 Impact (operational) BSEN 14604 Smoke alarm devices Clause 5.11 Impact(operational)and Annex E Apparatus for impact test Equipment parameters: 1) Model: ZNEN54-IP 2) Standards: EN 14604, EN 54,GB20517, GB4715, GB4716, GB 19880 3) Hammer head size: 76mm wide, 50mm high, 94mm long 4) Hammer weight: 0.79 kg 5) Weight weight: 0.55 kg

Q: Heat Alarm & Detector Test Tunnel

Equipment Function ： The heat alarm & detector test tunnel is used to test directional dependence, static response temperature, response times test for fire alarm and detector. The equipment meets the requirements of GB4716, EN 54-5, BS 5446-2 and ISO standards. The standard test tunnel is composed of tunnel, heater, Chiller, temperature control system, computer etc. According to the requirements of standard specifications and parameters, we use fast response thermocouples and advanced PID controller to attain the heating rate of 0.2 ℃/min, 1 ℃/min, 3 ℃/min, 5 ℃/min, 10 ℃/min, 20 ℃/min and 30 ℃/min as standard required. The maximum temperature is up to 160 ℃. During the test, the temperature will be controlled at + / - 2 ℃. The specially developed Zomtest heat test tunnel software can automatically control the test process, record the temperature curve and record the alarm response time. Specification ： Model Number：ZNEN54-5HC Power supply：380VAC power：20 kW Test standards： BS 5446-2, EN 54-5, GB 4716 Temperature control：PID setting value +/-2℃ Temperature rise rate：2° C/min、 1°C/min、3°C/min、5°C/min、10°C/min、20°C/min、30°C/min Temperature range：5~160°C Test tunnel：1m x 0.5m x 1.1m，Test section size 430mm x 270mm Air speed：0~1.2 m/s Test items ： Directional dependence Static response temperature Response times from typical application temperature Response times from 25°C Response times from high ambient temperature (dry heat operational) Supply voltage test Other tests（need additional equipment）：
